Flashlight Specification Guide

How Understanding Specs and Measurements Can Help You Find The Right Light.

While Pelican was one of the first manufacturers to use quantifiable test procedures, the need was recognized to develop a common language that customers could use to select the right flashlight for their specific needs.

As a result, the American National Standards Institute (ANSI) with input from the flashlight industry, developed performance standards and symbols to effectively communicate a flashlight's features and benefits.

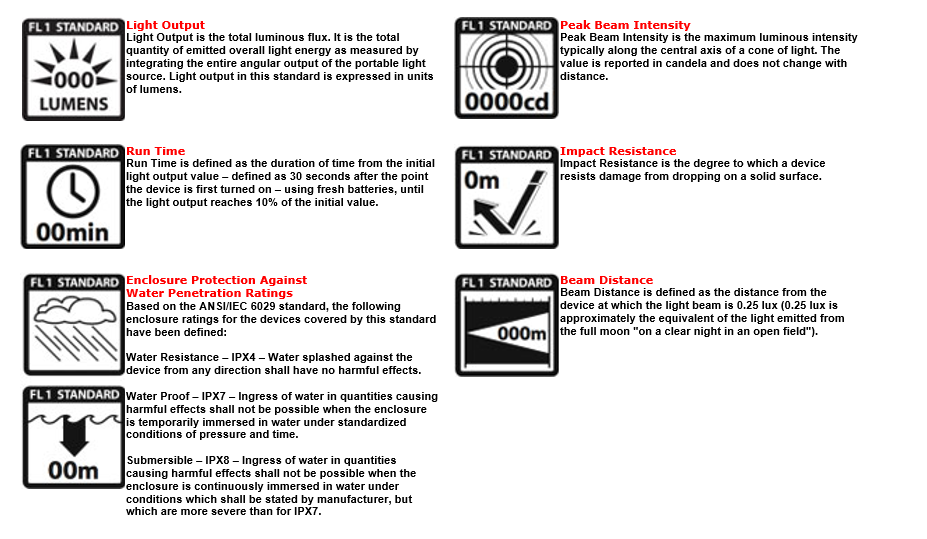

Resulting ANSI/NEMA FL 1 Standards include the six criteria described below:


ANSI (American National Standards Institute)
These standards are accredited by ANSI, which is a private non-profit organization that oversees the development of voluntary consensus standards for products, services, processes, systems, and personnel in the United States. The organization also coordinates U.S. standards with international standards so American products can be used globally.

Glossary of Terms:

Candela – A unit of measurement of the intensity of light that is, power emitted by a light source in a particular direction.

Lux – The unit of luminous flux in the International System, equal to the amount of light given out through a solid angle by a source of one candela intensity radiating equally in all directions.

Lumen – A unit of measurement of the amount of brightness that comes from a light source. Lumens define "luminous flux," which is energy within the range of frequencies we perceive as light.

Integrating Sphere - An integrating sphere is a measurement device with an entrance port that can accept all the directional light output of the device under test, or can totally enclose the device itself. The walls of the sphere should be highly diffuse with high reflectivity (>80%) and the spectroradiometer should be shielded from direct view of the device under test by a baffle system.

IP (Ingress Protection) –Ingress Protection (IP) ratings specify the environmental protection the enclosure provides. The IP rating normally has two numbers (IPXX). The first number represents protection from solid objects or materials (dust) where the second number represents protection from liquids (water). With the IP rating IP 54, 5 describes the level of protection from solid objects and 4 describes the level of protection from liquids.

Pelican's adoption of ANSI standards is ongoing and packaging is currently in the process of being converted. If you do not see dedicated ANSI icons and standards on your flashlight's packaging, please refer to the Pelican website for the most updated information.

*Replacement of damaged batteries will often restore flashlights to their working condition.
